Ev Lifepo4 Electric Power Battery 80kwh 100kWh 500v 150Ah 200ah For Tractors

Brand Name : CTS

Certification : CE

Place of Origin : Hunan,China

MOQ : 10 units

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 units per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case and Carton case

Model Number : CTS-500

Voltage : 500V

Capacity : 100ah/150ah/200ah

Color : Customized

Cycle life : 2500 times

Battery type : LiFePo4/NMC Battery

Warranty : 3 years

Contact Now

500v 80kWH ev battery pack for tractors, lifepo4 80kwh 100kWh battery for electric car, ev battery pack 500v 150Ah 200ah 300ah

Ev Lifepo4 Electric Power Battery 80kwh 100kWh 500v 150Ah 200ah For Tractors

Dimensions

Parameters of 537.6v 150ah battery pack
No.	Items	Technical data	Note
1	Battery type	Lifepo4	1P168S
2	Capacity	150Ah	@25℃
3	Voltage	537.6V
4	Power	80.64Kwh
5	Weight	≤1200Kgs
7	Working voltage range	420-613.2V
8	Continuous discharge current	150A
9	Dimension	2200950650mm

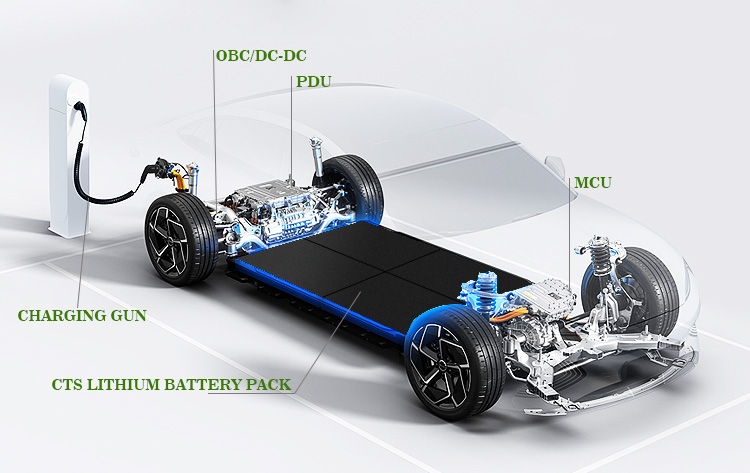

One Stop Battery Solution

CTS can provide one stop accessories

Free testing of accessories before shipment

Solve the configuration problem of different suppliers

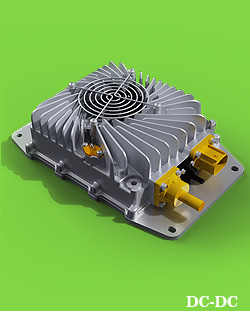

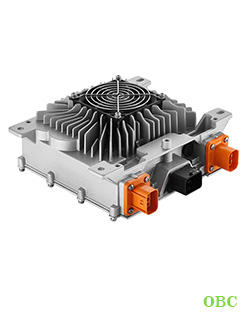

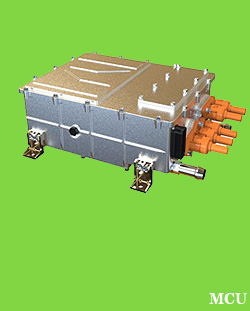

Battery, OBC, DCDC, MCU, PDU, Charging gun

Support 3.3kw and 6.6kw Wide AC range 90~240V, single phase Wide DC range 35V-680V IP 65
Liquid and air cooling


12V/ 1KW~1.5KW24V/ 1.5KW~3KWIP65
Liquid and air cooling

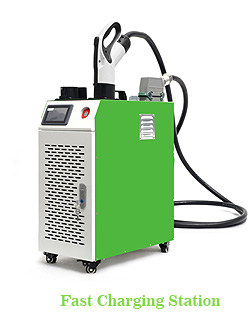

20~60KW high powerMovable charging station
220V single phase/ 380V 3 phase

AC 220V and 110V16A and 32A


Support customization Different control channels

Intergrated main BMS Relays built in and MSD available

Core technologies

>>> Lightweight and scalability <<<

CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum alloy and high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE structural simulation analysis to ensure structural strength and improve energy density. CTS uses standardized cells and BMS to build a 12V 24V 48V 72V battery modules. It can need different customer’s requirements by its excellent scalability to shorten the pack design cycle.
