CTS NCM Lithium Battery Rechargeable 144V 100ah 200ah 300ah 400ah For Electric Car

Brand Name : CTS

Model Number : CTS-144200

Certification : CE

Place of Origin : Hunan,China

MOQ : 10 unit

Supply Ability : 5000 untis per month

Packaging Details : Polywood case

Battery Size : lithium battery

Anode Material : NCM

Weight : 300kg, 140kg

The discharge rate : 3C

Cycle life : 3000times

Battery type : LiFePO4, NMC

Contact Now

CTS High power 144V 100ah 200ah 300ah 400ah rechargeable EV battery, NCM lithium battery for electric car 200v 300v 400v

CTS NCM Lithium Battery Rechargeable 144V 100ah 200ah 300ah 400ah For Electric Car

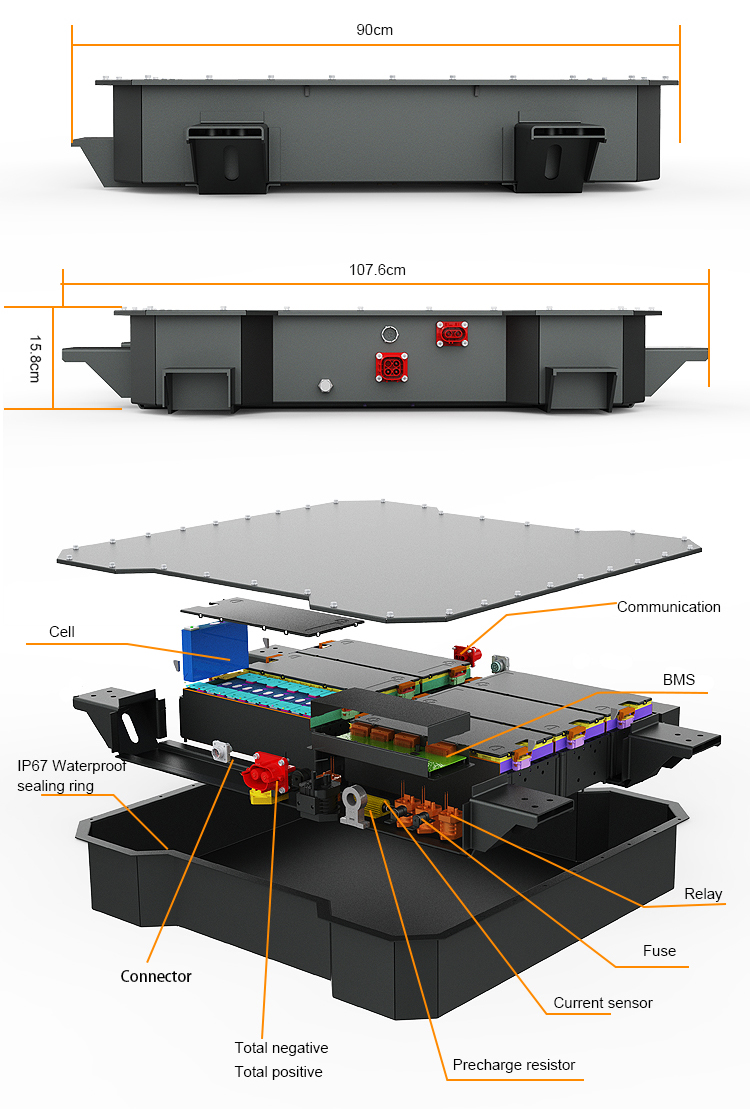

Dimensions

Deatails

Parameters of 144v 100Ah NMC battery pack
No.	Items	Technical requirement	Note
1	Battery Type	NMC	20S
2	Capacity(Ah)	100	@25℃
3	Volatge	144
4	Power(kWh)	14.4
5	Weight(kg)	130.5
6	Working Voltage range(DC V)	120-168
7	Continuous discharge current(A)	100	@EOL,@25℃
8	Peak discharge current(A)	200	For 30 seconds
9	Dimension (L/W/H, mm)	Irregular

Core technologies

>>> Lightweight and scalability <<<

CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum alloy and high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE structural simulation analysis to ensure structural strength and improve energy density. CTS uses standardized cells and BMS to build a 12V 24V 48V 72V battery modules. It can need different customer’s requirements by its excellent scalability to shorten the pack design cycle.

>>> BMS and Active Balance <<<

CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can modify BMS parameters on site according to the actual application of customers, such as CAN / RS485 communication protocol, threshold parameters such as over / under voltage protection, high current protection, over / under temperature protection.

>>> Thermal Management and Simulation Design <<<

CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering), and can do thermal management simulation design and structural mechanics simulation design for the pack system. Air cooling system, liquid heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.

Product Tags:

400ah Rechargeable EV Battery

144V NCM Lithium Battery

CTS NCM Lithium Battery Rechargeable 144V 100ah 200ah 300ah 400ah For Electric Car Images
