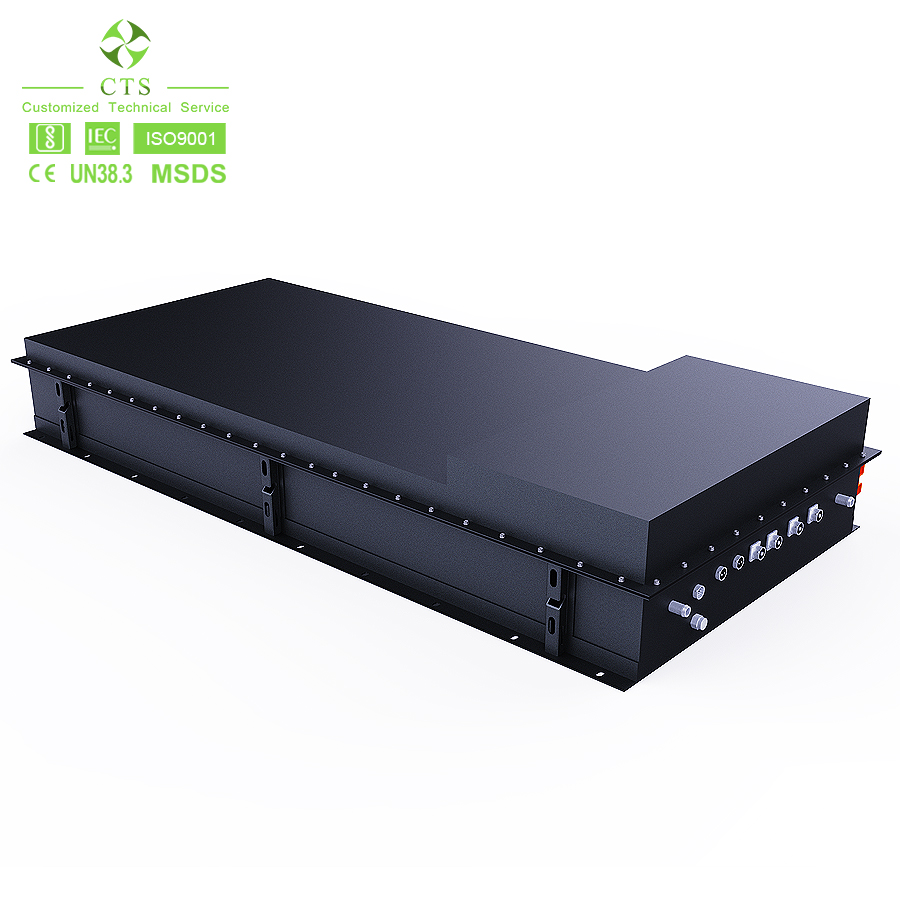

CTS Port AGV 100kwh Ev Lithium Battery 500v 200AH 80kwh HV Battery Pack

Name: CTS Port AGV 100kwh Ev Lithium Battery 500v 200AH 80kwh HV Battery Pack
Brand: CTS battery
Price: 18000 USD

Quality CTS Port AGV 100kwh Ev Lithium Battery 500v 200AH 80kwh HV Battery Pack for sale

Brand Name : CTS battery

Model Number : CTS-EV500200

Certification : ISO9001/MSDS/UN38.3/

Place of Origin : Changsha ,hunan province

MOQ : 2

Price : 18000~22000USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3000pcs/month

Delivery Time : 55days

Packaging Details : wooden case

aaplication : electric car battery, electric bus,electric truck , AGV

battery type : Lifepo4 lithium ion battery

other : Cooling/heating pipe, CAN BUS protocol

voltage : 500V

capacity : 200V

size : customized

Contact Now

CTS Port AGV 100kwh lithium battery 500v 200AH, 80kwh 500v ev lithium battery, engineering vehicle battery 500v 100ah 200ah

CTS Port AGV 100kwh Ev Lithium Battery 500v 200AH 80kwh HV Battery Pack

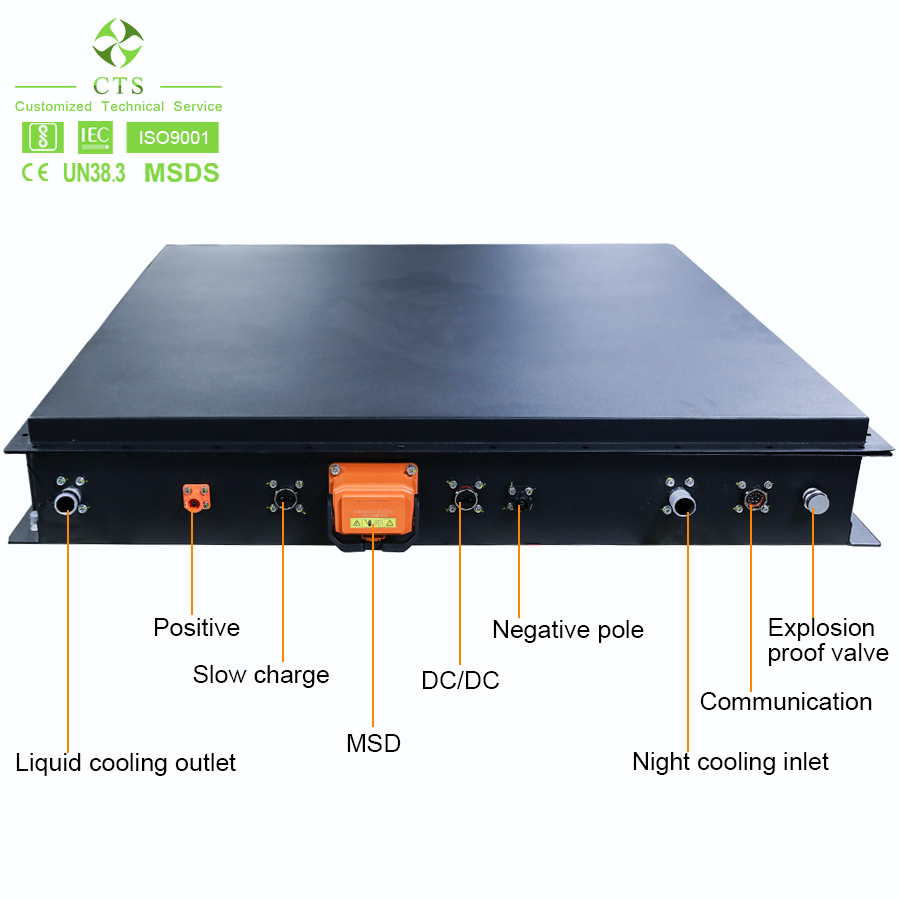

Dimension & Parameters

Parameters of 500v 200Ah Lifepo4 battery pack
No.	Items	Technical requirement	Note
1	Battery type	500V200AH Lifepo4 Battery
2	Cell	3.2V 105AH LFP Prismatic cell
3	Energy	90.2kwh	at 23±2℃
4	Connections	154S2P
5	Working voltage	562V ~385V
6	Charging Voltage	562V±0.15V
7	Discharge cut-off Voltage	385V±0.3v
8	Standard Charging	80A
9	Max Charge Current	50A at0~10℃ 80A at11~20℃ 80A at21~30℃ 80A at31~50℃	Temperature 0~50±2℃
10	Standard Discharging	200A	Temperature -20~55±2℃
11	Max Discharging Current	400A/10S
12	Communication	CAN bus
13	Liquid cooling	support
14	BMS	BMS+ Relay
15	Housing	IP67 Steel Case
16	Dimension	17701436207mm	adjustment
17	Working temperature	Discharging: -20 to 55℃ , Charging :0 to 55℃
18	Weight	About 900kg
19	2 meters charging & discharging and communication cable, CAN card x 1.

Core technologies

Title goes here.

1. Design Capability
 There are more than 20 experienced experts in our engineering and technical team, dealing with overall structural design from
 cells to battery packs, battery system design, simulation design of cables and wires. We could also offering One-stop services by
 providing motor, MCU, OBC and charging piles.

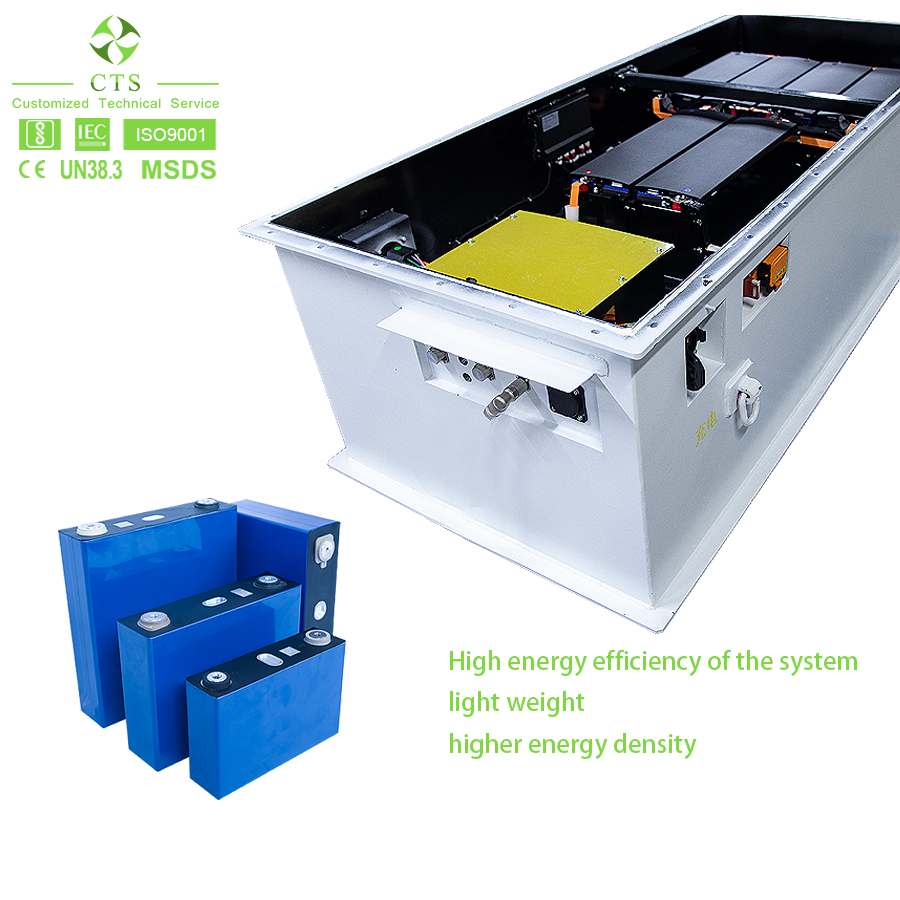

2,Lightweight And Scalability

CTS systematically optimizes the cell design and electrical component selection. We select the lightest steel/aluminum alloy and
high-strength plastics,battery box and pack structure to reduce the volume and weight of the battery system combined with CAE
structural simulation analysis to ensure structural strength and improve energy density.
CTS uses standardized cells and BMS to build a 12V 24V 48V 72V battery modules. It can need different customer's
requirements by its excellent scalability to shorten the pack design cycle.

3,BMS And Active Balance
 CTS has an experienced BMS development team. Our BMS uses passive balance by default. Active balance can be selected which can
 modify BMS parameters on site according to the actual application of customers, such as CAN / RS485 communication protocol,
 threshold parameters such as over / under voltage protection, high current protection, over / under temperature protection.

4,Thermal Management And Simulation Design

CTS has the capabilities of CFD simulation (Computational Fluid Dynamics) and CAE simulation (Computer Aided Engineering), and can
 do thermal management simulation design and structural mechanics simulation design for the pack system. Air cooling system, liquid
 heat and liquid cooling system, PI film heating, silica gel film heating are used in the thermal management design.

1. Reliable Lifepo4 cells are optional, high safety performance

We also build cooling pipes into battery housing when discharge rate is more than 1C.

2.Test and Verification

CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification / production verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design requirements. It includes temperature test, mechanical test, external environment simulation test, electrical safety test, battery performance test, abuse test and so on.

Application

Our standard module widely used in the industry vehicle, Tunnel vehicle, large capacity AGV, Skyline crane. We have extensive experience in different market. lf you have any question please contact us, we will provide the proper solution for you!

Company Introduction

Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.
 We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-1000ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E- tools,unmanned airplane, golf cart, fork lift,cleaning car , electric wheelchair, etc.
 We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
 We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
