CTS OEM 320v 100ah Lithium Ion Battery 20kwh 30kwh 300v 540v Lifepo4 For Electric Car

Name: CTS OEM 320v 100ah Lithium Ion Battery 20kwh 30kwh 300v 540v Lifepo4 For Electric Car
Brand: 307v 50ah lifepo4 battery pack
Price: 1500 USD

Quality CTS OEM 320v 100ah Lithium Ion Battery 20kwh 30kwh 300v 540v Lifepo4 For Electric Car for sale

Brand Name : 307v 50ah lifepo4 battery pack

Model Number : 307v 50ah electric car battery

Certification : ce/msds/un38.3

Place of Origin : Hunan China

MOQ : 2pcs

Price : 1500usd-1800usd/unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000

Delivery Time : 20 working days

Packaging Details : Wooden box or carton

Type : Lifepo4

Application : electric car/vehicle/bus/truck

Nominal capacity : 100ah/200ah/300ah

Cycle life : 3000 cycle times

Weight : 135kg

Product name : 307v 50ah lithium battery

Features : cost effective, fast delivery, Stable structure

Standard discharge current : 1C

Contact Now

320v 100ah lithium ion battery for electric car, 20kwh 30kwh lithium battery pack 300v, 540v lifepo4 electric car battery pack

CTS OEM 320v 100ah Lithium Ion Battery 20kwh 30kwh 300v 540v Lifepo4 For Electric Car

OEM/ODM 100% After-Sales Gurantee 100% Free Technical Support Fast Delivery ◆ Longer cycle life, more Powerful
 ◆ Built-in smart BMS monitor battery state
 ◆ Extremely safe, no explosion, no fire under collision
 ◆ Cooling and heating system optional
 ◆ Customized battery solutions base on yours requirements
 ◆ Excellent large current discharge performance
 ◆ Low self-discharge and good discharge performance at low temperatures

307.2V 50Ah battery pack consists of 76.8V 50Ah module(4S1P)

MODEL	CTS7650
ELECTRICAL SPECIFICATIONS
Cell Type - Chemistry	Prismatic- LiFePO4
Rated Capacity	50Ah
Rated Voltage	76.8V
Energy	3.84kWh
Resistance	30mΩ
Self Discharge	<4% per month
Modules in Series	4S1P to 307.2V 50Ah battery pack
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)	500370160
Weight	32Kg/module
Enclosure Protection	IP67
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage	60V
Max Continuous Discharging Current	50A
Peak Discharge Current	100A for 30 seconds
Recommended Discharge Current	50A
CHARGE SPECIFICATIONS
Charging Limited Voltage	87.6V
Max Charging Current	50A
Recommended Charge Current	25A
TEMPERATURE SPECIFICATIONS
Charge Temperature Range	0~45℃
Discharge Temperature Range	-20~60℃
Recommended Operating Temperature	15~35℃
Storage Temperature & Humidity Range (Less than 1 month)	-20~35℃, 45~75%RH
Storage Temperature & Humidity Range (Less than 3 months)	-10~35℃, 45~75%RH
Recommended Storage Temperature & Humidity Range	15~35℃, 45~75%RH
OEM
Available on request	yes

According to the size requirements of the ship, we can design and customize the matched
 lithium battery system. CTS provides one-stop battery service. we also can provide OBC , charge piles etc.

CTS lithium battery has a wider range of application and can meet 90% of yacht , tour
 boat, and speedboat products in the market.

From the battery cell to the battery pack, CTS controls every production link in strict accordance with the ISO9001 standard, arranges quality inspectors to check the process details to ensure the safety of the battery, and presents the best products to every customer

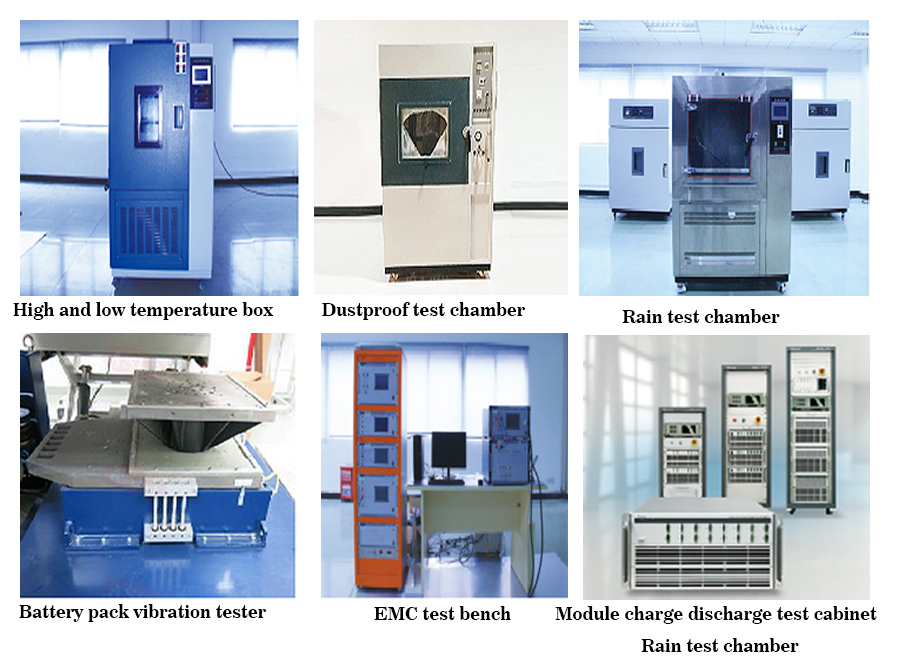

CTS has its cooperated battery test laboratory. We will verify the battery DV / PV (design verification /production verification) stage in the laboratory to verify whether the design / production of the battery pack meets the design requirements. It includes temperature test, mechanical test, external environment simulation test, electrical safety test, battery performance test, abuse test and so on.
